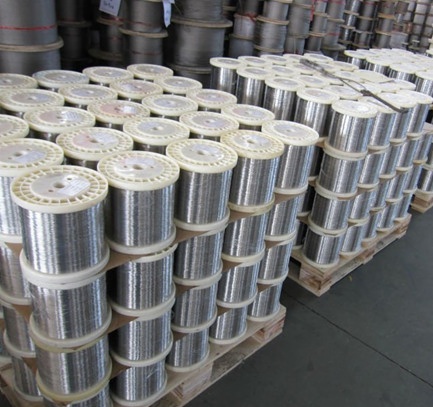

Grade: 200(Cu), 201(Cu), 202,301, 302, 304(L), 314, 316(L). 410, 430, etc
Wire diameter: 0.10mm- 5.0mm.
Characteristics: Shiny surface condition excellent workability
Applications:
It generally used in braiding the hose for bathing product and machinery. With it good flexibility,resistant to high temperature and resistant to corrosion, it used widely in many industries.
|
Diameter Tolerance & Oval Tolerance
|
Mechanical Properties
|
|
(mm)Dia. |
(mm)Dia.Tolerance |
Oval.Tolerance |
|
0.030-0.050 |
±0.003 |
≤0.003 |
|
0.050-0.080 |
±0.004 |
≤0.004 |
|
0.080-0.10 |
±0.005 |
≤0.005 |
|
0.10-0.16 |
±0.007 |
≤0.007 |
|
0.16-0.28 |
±0.010 |
≤0.010 |
|
0.28-0.50 |
±0.013 |
≤0.013 |
|
0.50-0.90 |
±0.015 |
≤0.015 |
|
0.90-1.60 |
±0.02 |
≤0.02 |
|
1.60-2.80 |
±0.03 |
≤0.03 |
|
2.80-5.00 |
±0.04 |
≤0.04 |
|
5.00-9.00 |
±0.05 |
≤0.05 |
|
9.00-12.00 |
±0.06 |
≤0.06 |
|
12.00-14.00 |
±0.07 |
≤0.07 |
|
|
Type |
(mm)Dia |
(N/mm2)Tensilestrength |
(%)Elongation |
|
SUS304.SUS304L |
0.02-0.05 |
880-1130 |
≥10 |
|
SUS316.SUS316L |
0.02-0.05 |
650-900 |
≥8 |
SUS304.SUS304L
SUS309S
SUS310S
SUS316.SUS316L
SUS321 |
0.05-0.16 |
650-900 |
≥20 |
|
0.16-0.50 |
610-860 |
|
0.50-1.60 |
570-820 |
≥30 |
|
1.60-5.00 |
520-770 |
|
5.00-14.00 |
500-750 |
|
SUS304J3 |
0.05-0.16 |
620-870 |
≥20 |
|
0.16-0.50 |
580-830 |
|
0.50-1.60 |
540-790 |
≥30 |
|
1.60-5.00 |
500-750 |
|
5.00-14.00 |
490-740 |
|
Chemical Composition of Stainless Steel Wire
|
AISI Grade |
Chemical Composition(%) |
|
|
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
|
304 |
=<0.08 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
8.00~10.50 |
18.00~20.00 |
- |
|
304H |
>0.08 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
8.00~10.50 |
18.00~20.00 |
- |
|
304L |
=<0.030 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
9.00~13.50 |
18.00~20.00 |
- |
|
316 |
=<0.045 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
10.00~14.00 |
10.00~18.00 |
2.00~3.00 |
|
316L |
=<0.030 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
12.00~15.00 |
16.00~18.00 |
2.00~3.00 |
|
430 |
=<0.12 |
=<0.75 |
=<1.00 |
=<0.040 |
=<0.030 |
=<0.60 |
16.00~18.00 |
- |
|
430A |
=<0.06 |
=<0.50 |
=<0.50 |
=<0.030 |
=<0.50 |
=<0.25 |
14.00~17.00 |
- |
