Coarse wire (from 5.5mm to 1.0mm)

Technical data:

Material: SUS304, SUS316L, SUS310S, SUS308S, SUS309S, SUS321, etc., imported from Japan and France.

Wire diameter: from 5.5mm to 1.0mm

Weight/ coil: 30kg-50kg/barral, 50kg-150kg/coil

Tensile Strength: above 650Mpa

Elongation: above 25%

Applications: Standard parts, wire rope, spring, welded wire, and wire cloth weaving.



Medium Wire (from 1.0mm to 0.09mm)

Technical Data:

Technical standard: Q/9D183-2002

Material: SUS304, SUS316L imported from Japan and France

Diameter: from 1.0mm to 0.09mm

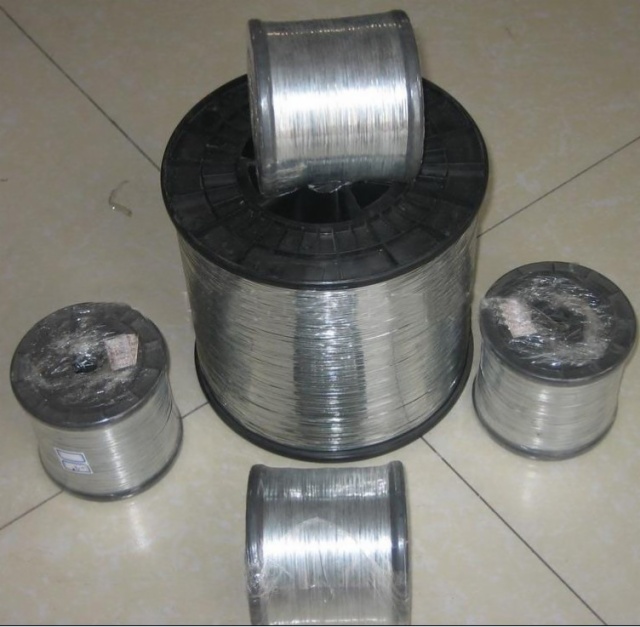

Spool type: OB80, OB115, K100, DIN160, DIN200

Weight/spool: 500g-2kg/spool, 5kg-10kg/spool

Elongation: above 25%

Tensile strength: above 650Mpa

Applications: wire mesh weaving, wire redrawing.

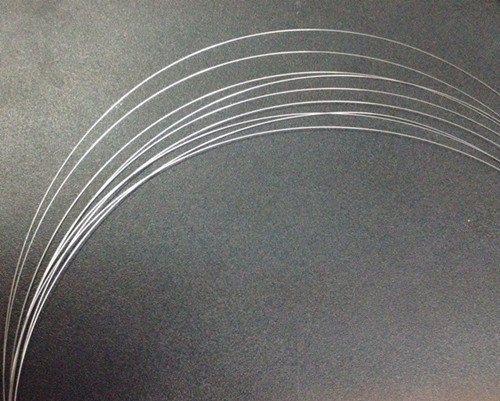

Fine Wire

Technical standard: Q/9D183-2002

Material: SUS304, SUS316L imported from Japan and France

Diameter: from 0.09mm to 0.015mm

Spool type: OR80, OR115, HK100

Weight/spool: 500g-2kg/spool,

Elongation: above 25%

Tensile strength: above 70Mpa

Applications: wire mesh weaving, textile fabric like radiation resistant shield clothing.
