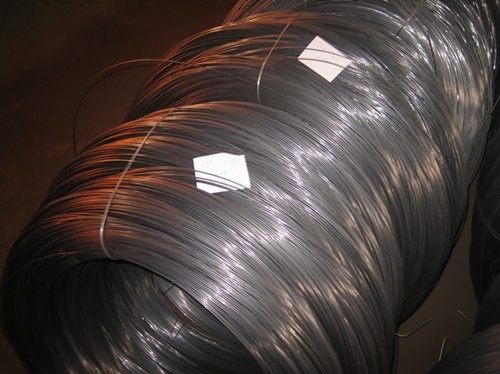

Oil tempered spring steel wire for small size

Item Code: Features:1. Material: S10C-S85C; SWRH27-SWRH82B; CK10-CK75 and so on. 2. Size: Diameter: Diameter: 0.1mm--6mm 3. Usage: Standard; Furniture manufacturing; Fasteners, Auto parts; Hardware.

Description

Commodity: Oil tempered spring steel wire for small size

1. Material JIS: SUP6; SUP7; SUP9; SUP9A; SUP10; SUP12; SUP12V; S60C——CSP.
                   SAE: SAE9254; SAE9260; SAE6150; SAE9255; SAE9254V; SAE1566; SAE1065; SAE52100.
                   DIN: 55Cr3; 60Si7; CK67; 60SiCr7; 50CrV4; 100Cr6.

2. Usage Automobile suspension spring; auto valve spring; automobile clutch spring;
                motorcycle damping spring; car stabilizer bar; etc.

3. Size      Diameter: 0.1mm--6mm

4. Material chemical composition

Steel grade	C	Mn	S	P	Si	Cr	Cu
SUP9	0.52～0.60	0.65～0.95	≤ 0.030	≤ 0.030	0.17～0.37	0.65～0.95	≤0.25
SAE9254	0.51～0.59	0.60～0.90	≤0.040	≤ 0.035	1.20～1.60	0.60～0.80
SAE6150	0.48～0.53	0.70～0.90	≤ 0.035	≤ 0.040	0.15～0.35	0.80～1.10
55CrSi	0.50～0.60	0.50～0.80	≤ 0.030	≤ 0.030	1.20～1.60	0.50～0.80	≤ 0.02
60Si2Mn	0.56～0.64	0.60～0.90	≤ 0.035	≤ 0.035	1.60～2.00	≤ 0.035	≤0.25
SAE52100	0.95～1.05	0.25～0.45	≤0.025	≤0.025	0.15～0.35	1.40～1.65	≤ 0.25
100Cr6	0.95～1.05	0.25～0.45	≤0.025	≤0.025	0.15～0.35	1.40～1.65	≤0.25
SUP10	0.47～0.55	0.65～0.95	≤ 0.030	≤ 0.030	0.15～0.35	0.80～1.10	≤0.25
SUP6	0.56～0.64	0.60～0.90	≤ 0.035	≤ 0.035	1.50～2.00	≤ 0.035	≤0.25

5. Tensile strength

Diameter Range(mm)	Tensile Strength	MPa				Reduction	Area%
	FDC TDC	FDCrV-A TDCrV-A	FDCrV-B TDCrV-B	FDSiMn TDSiMn	FDCrSi TDCrSi	FD	TD
0.50-0.80	1800-2100	1800-2100	1990-2200	1850-2100	2000-2250	------	-----
>0.80-1.00	1800-2060	1780-2080	1860-2160	1850-2100	2000-2250
>1.00-1.30	1800-2010	1750-2010	1850-2100	1850-2100	2000-2250	45	45
>1.30-1.40	1750-1950	1750-1990	1840-2070	1850-2100	2000-2250	45	45
>1.40-1.60	1740-1890	1710-1950	1820-2030	1850-2100	2000-2250	45	45
>1.60-2.00	1720-1890	1710-1890	1790-1970	1820-2000	2000-2250	45	45
>2.00-2.50	1670-1820	1670-1830	1750-1900	1800-1950	1970-2140	45	45
>2.50-2.70	1640-1790	1660-1820	1720-1870	1780-1930	1950-2120	45	45
>2.70-3.00	1620-1770	1630-1780	1700-1850	1760-1910	1930-2100	45	45
>3.00-3.20	1600-1750	1610-1760	1680-1830	1740-1890	1910-2080	40	45
>3.20-3.50	1580-1730	1600-1750	1660-1810	1720-1870	1900-2060	40	45
>3.50-4.00	1550-1700	1560-1710	1620-1770	1710-1860	1870-2030	40	45
>4.00-4.20	1540-1690	1540-1690	1610-1760	1700-1850	1860-2020	40	45
>4.20-4.50	1520-1670	1520-1670	1590-1740	1690-1840	1850-2000	40	45
>4.50-4.70	1510-1660	1510-1660	1580-1730	1680-1830	1840-1990	40	45
>4.70-5.00	1500-1650	1500-1650	1560-1710	1670-1820	1830-1980	40	45
>5.00-5.60	1470-1620	1460-1610	1540-1690	1660-1810	1800-1950	40	40
>5.60-6.00	1460-1610	1440-1590	1520-1670	1650-1800	1780-1930	35	40
